Advantages
- Improves pocket production efficiency
- Reduces manual labor and operation time
- High accuracy and consistent pocket quality
- Clean laser cutting without fabric fraying
- Suitable for mass garment production
- Professional and durable pocket finishing
Applications
Suitable for:
- Trousers
- Jeans
- Uniforms
- Jackets
- Casual wear
- Fashion garments
- Pocket welting production
- High-end garment manufacturing
| 产品优势 Advantage |
|---|
| 我们的激光开袋机应用广泛，主要应用于单唇袋、双唇袋、拉链袋、侧边袋、袋口等切割缝制。 |

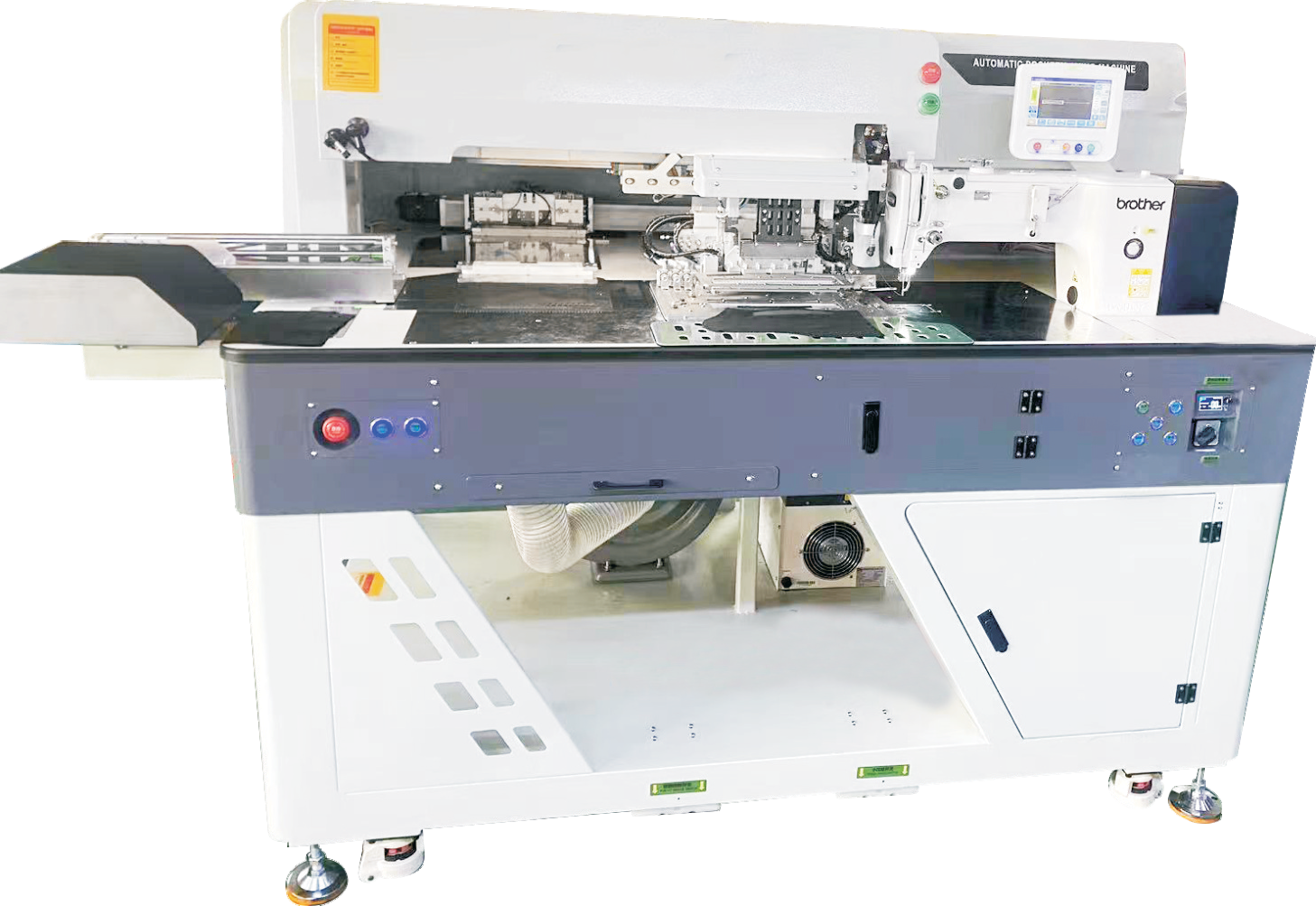

| Our laser pocket welting machines are widely used for single welt pockets, double welt pockets, zippered pockets, side pockets, pocket openings, and equal cutting sewing applications. |
-
技术参数 Parameter 规格 Specification 机头缝制速度 Head Sewing Speed 2500 sti/min 搭载机头 Equipped With Handpiece Brother 311 [HS] 机针 Machine Needle MT*190 [12# / 14# / 16#] 缝制线迹编程 Sewing Stitch Programming 操作屏输入方式 Screen Input Method 线迹编程储存容量 Line Programming Storage Capacity 最多可储存花样999种 Up to 999 patterns can be stored 针距 Stitch Distance 1.0mm – 3.5mm 压脚上升高度 Pressure Foot Rising Height 60mm – 80mm 缝制口袋范围 Sewing Pocket Range X direction 100mm – 220mm / Y direction 10mm – 35mm 缝制口袋速度 Speed Of Sewing Pockets 10–15 seconds/pc 折袋方式 Folding Method 四个方向同时进行折袋 Simultaneous bag folding in all four directions 开口袋方式 Pocket Opening 用100W激光头切割 Cutting with 100W laser head 缝制工作方式 Sewing Methods 折袋和缝制同时进行，自带断线保护功能 Bag folding and sewing are carried out at the same time, with broken thread protection function 送布驱动方式 Feeding Drive Mode 伺服电机驱动【750W】 Servo motor drive 750W 电源 Power Supply AC220V 气压、空压消费量 Air Pressure And Air Pressure Consumption 0.5Mpa [5kg/cm²], 22dm/min
