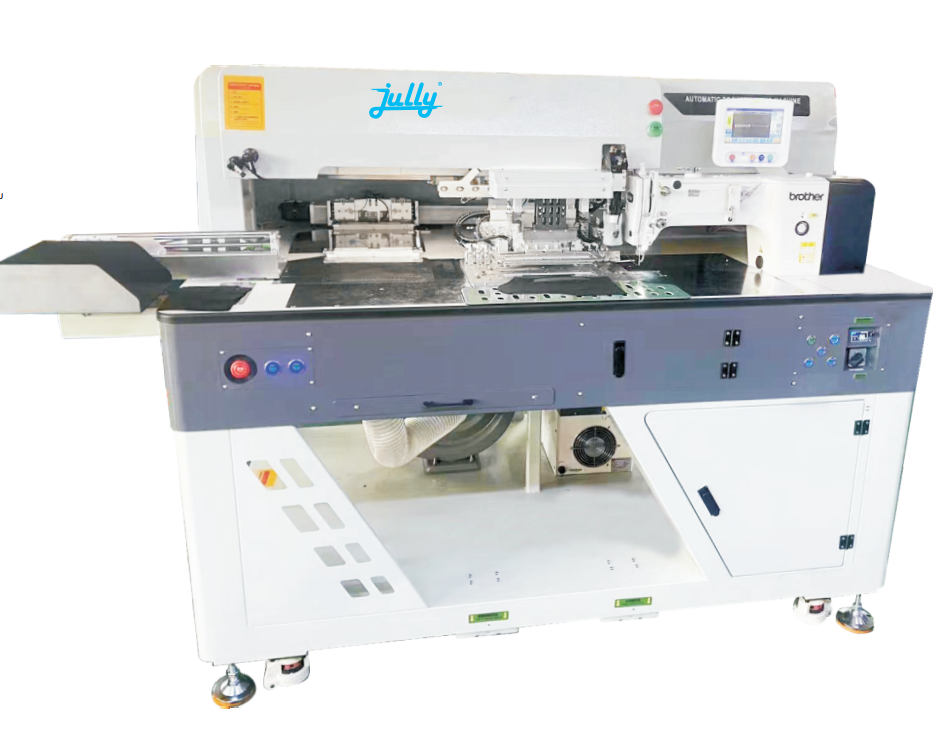

JU 1008-BR
Series: Automatic Equipment Series
Machine Type: Automatic Laser Pocket Welting Machine Information
Product Description
The JU 1008-BR is an Automatic Laser Pocket Welting Machine designed for high-efficiency pocket cutting and sewing operations. It is widely used for producing:
- Single welt pockets
- Double welt pockets
- Zipper pockets
- Side pockets
- Pocket openings
- Various cutting and sewing applications
Product Advantages
- Laser cutting and sewing integrated system
- High-speed automatic pocket production
- Suitable for multiple pocket styles
- Simultaneous bag folding and sewing
- Built-in broken thread protection
- High precision and efficient operation
- Supports single-needle and double-needle sewing processes
Production Capacity
- Single-needle sewing: 180 pieces/hour
- Double-needle sewing: 120 pieces/hour
Technical Specifications
| Specification | Details |
|---|---|
| Model | JU 1008-BR |
| Sewing Speed | 2500 stitches/min |
| Equipped Head | Brother 311 (HS type) |
| Needle Type | MT×190 (#12, #14, #16) |
| Stitch Programming | Screen input method |
| Pattern Storage | Up to 999 patterns |
| Stitch Distance | 1.0 mm – 3.5 mm |
| Presser Foot Height | 60 mm – 80 mm |
| Sewing Pocket Range | X: 100–220 mm / Y: 10–35 mm |
| Pocket Sewing Speed | 10–15 seconds per pocket |
| Folding Method | Four-direction simultaneous folding |
| Pocket Opening Method | 100W laser head cutting |
| Sewing Method | Folding and sewing simultaneously |
| Feeding Drive Mode | 750W servo motor drive |
| Power Supply | AC220V |
| Air Pressure | 0.5 MPa (5 kg/cm²) |
| Air Consumption | 22 dm/min |
| Weight | 950 kg |
Supported Sewing Styles
- Double pocket lip zipper one-time sewing
- Single zipper one-time sewing
- Single pocket lip zipper two-time sewing
- Round corner pocket zipper sewing
- Three-side pocket sewing
- Double pocket lips with false pocket sewing
- Single pocket lips without zipper sewing
- Zipper cover one-time sewing
- 60° diagonal zipper sewing
- Polo shirt placket sewing
