JU 118

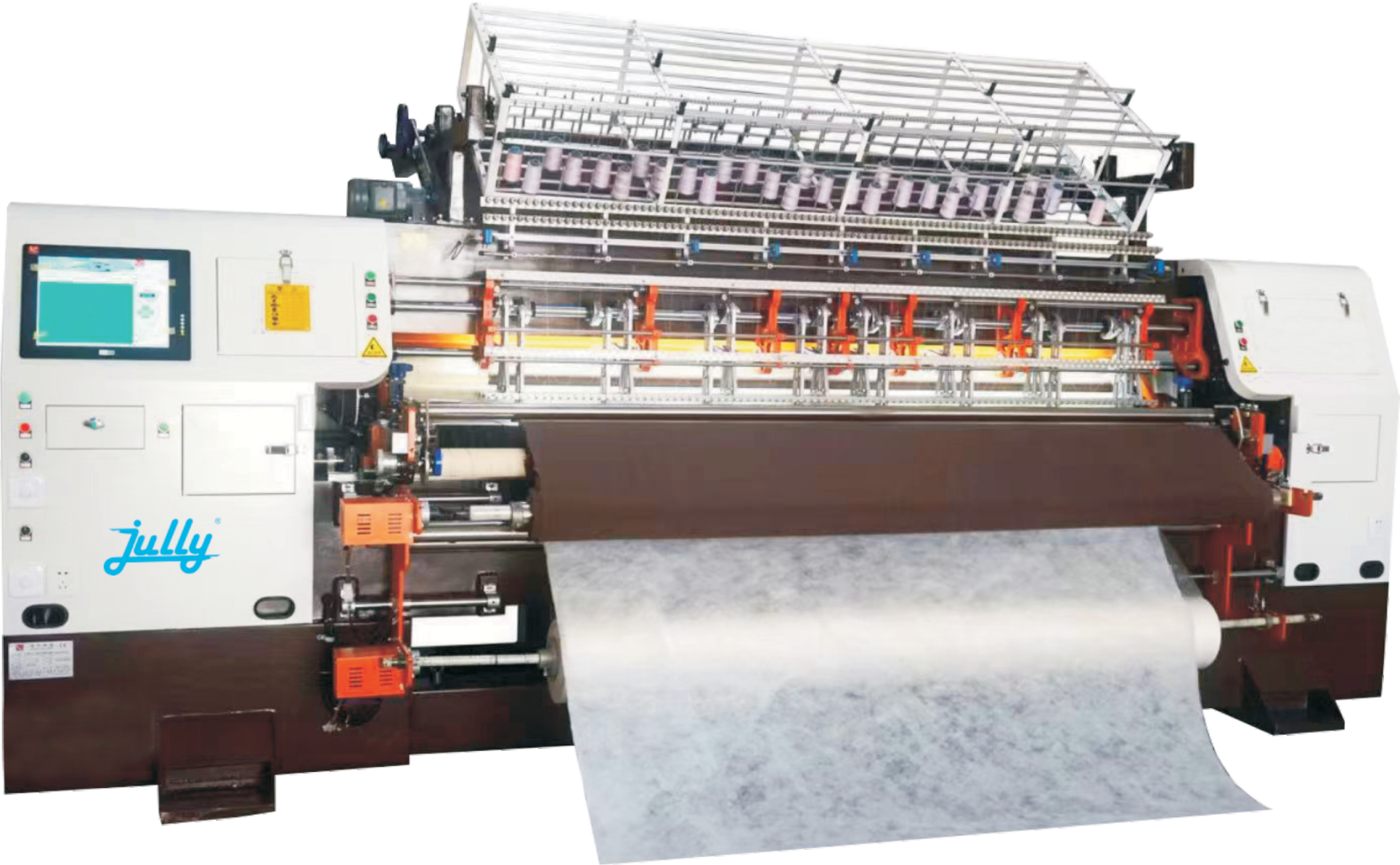

Computerized High-Speed Shuttle Multi-needle Quilting Machine

The JU 118 is a computerized high-speed shuttle multi-needle quilting machine designed for large-scale quilting production with high precision and stable performance. It is widely used for quilting mattresses, bed covers, comforters, sleeping bags, sofa cushions, and other textile products requiring decorative and reinforced quilting patterns.

Machines in the 118 class commonly support computerized pattern editing, automatic thread break detection, and high-speed servo-controlled quilting operations.

Main Features

  • Computerized quilting control system
  • Multi-needle shuttle quilting technology
  • High-speed industrial quilting performance
  • Automatic thread break detection
  • Digital speed adjustment
  • Servo motor drive system
  • Automatic needle lifting function
  • Large pattern quilting capability
  • Easy pattern editing and modification
  • Stable and low-vibration operation
Advantage
Quilting products include garments, sleeping bags, summer quilts, bedspreads, cushions, and various other quilted textile products.
Model Size (L×W×H) Weight Quilting Width X-axis Movement Power
JU-66-2D / 3D 3935×1750×1700 mm 4500 Kg 1650 mm 204 mm 4 kW
JU-82-2D / 3D 4425×1750×1700 mm 5500 Kg 2100 mm 254 mm 6.5 kW
JU-96-2D / 3D 4730×1750×1700 mm 6000 Kg 2450 mm 304 mm 6.5 kW
JU-104-2D / 3D 4930×1750×1700 mm 6200 Kg 2650 mm 304 mm 6.5 kW
Model Stitch Length Output Speed Needle Type Rolling Speed Voltage
JU-112-2D / 3D 2–8 mm 10–240 m/h #14 / #16 / #19 500–1200 r/min 380V/50Hz · 220V/60Hz
JU-118-2D / 3D 2–8 mm 10–240 m/h #14 / #16 / #19 500–1200 r/min 380V/50Hz · 220V/60Hz
JU-128-2D / 3D 2–8 mm 10–240 m/h #14 / #16 / #19 500–1200 r/min 380V/50Hz · 220V/60Hz
